Voyager Star
Safety superstar with high performance, flexibility and sustainability.
- Voyager Star is designed for an expansive range of indoor applications including office, education, retail and more
- Thanks to its three specialised optics; Anti-panic, Escape route and Spot (narrow beam), delivered with each luminaire, it is possible to decide on-site which optic is the perfect one for the specific luminaire location
- Due to the high-performance optics for reaching very wide spacing values, luminaires can be saved when compared to other solutions and the overall project costs are reduced
- Our basicDIM wireless variants are completing the self-contained portfolio, designed to make your refurbishment projects running as smooth as possible
- The huge variants of different central battery systems, as well as with DALI or powerline communication, makes it possible to choose Voyager Star for projects big and small
Wykonanie

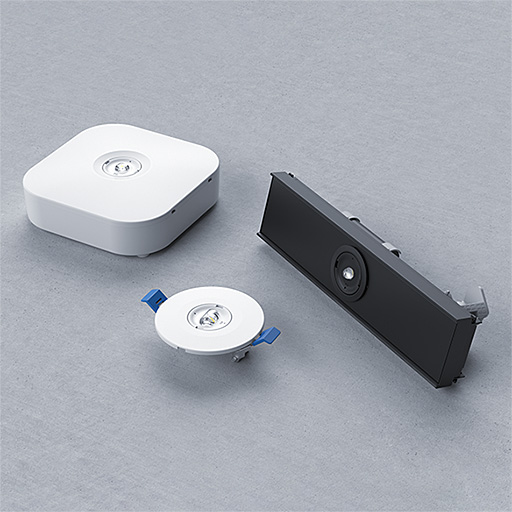

Surface-mounted and Recessed versions:
Housing: white or black polycarbonate (PC)
Lenses: transparent PMMA
Contus version:
Housing: Roll-formed sheet steel with white or black polyester coating
Lenses: transparent PMMA
Montaż
Depending on the location, the installer can select from a choice of three supplied optics (ESC, ANT, Spot) to best suit the lighting requirements of the space. A tool-free click-in system provides quick and easy installation.
Voyager Star Recessed can be installed directly into a wide range of ceiling types, with a thickness between 1 mm and 25 mm. The luminaire has a discreet cut-out diameter of only 68 mm. Loop-in, Loop-out is possible for cables with wires up to 2.5 mm².
The Surface Mounted Voyager Star is delivered with a double-back and double-sided cable entry. Loop-in, Loop-out is possible for cables with wires up to 2.5 mm².
Tool-free installation of the Voyager Star Contus models is by a simple ‘click-in’ system.
▼ Voyager Star, części zapasowe
Opis | Waga (kg) | SAP Code | |||||||
---|---|---|---|---|---|---|---|---|---|
ACCU NiMH 2,4V 2,2Ah Cs 2 SBS | 1.00 | 59004661 | |||||||
ACCU NiMH 2,4V 4,0Ah LA 2 SBS CON3 75 | 0.16 | 59009424 | |||||||
ACCU NIMH 2.4V 4Ah 7/5 2 SBS CON3 165mm | 0.20 | 59004666 | |||||||
ACCU NIMH 3.6V 2.2Ah Cs 3 SBS 135/160mm | 0.20 | 59010372 | |||||||
EMpower PROset E1D 1/340mA | 0.07 | 59010609 | |||||||
EMpower PROset E3D 1/340mA | 0.07 | 59010610 | |||||||
EMpower PROset E3D 1/420mA | 65.00 | 59010458 | |||||||
EMpower PROset ECD | 0.07 | 59009272 | |||||||
EMpower PROset ECD 1/550mA | 0.07 | 59011015 | |||||||
EMpower PROset ECP | 0.07 | 59009273 | |||||||
EMpower PROset ECP 1/550mA | 0.07 | 59011016 | |||||||
EMpower PROset ExD | 0.07 | 59009271 | |||||||
EMpower VOYAGER Star ECC 1/550mA | 0.07 | 59010854 | |||||||
EMpower VOYAGER Star ECS 1/550mA | 0.07 | 59010853 | |||||||
EMpowerLED E3D 1/350mA | 0.07 | 59012020 | |||||||
VOYAGER STAR ANTIPANIC LENSES | 0.04 | 59007293 | |||||||
VOYAGER STAR ESCAPE LENSES | 0.04 | 59007292 | |||||||
VOYAGER STAR SPOT LENSES | 0.06 | 59008194 |
