Stirrup fixed using different fixation points (one M20 screw or two M14 screws). Tiltable body fixed to stirrup with M17 Hex screw. Reversable stirrup allows hang down position and different mounting configurations. Integrated connection box with 1 x M20 cable gland accepting 5G cable and wiring with push-in terminal for wires between 1mm² and 1,5mm² for LED supply.
Gear Box installed on the stirrup (by using the dedicated accessory) or remotely up to 200 metres from the luminaire, and equipped with four different cable glands - 1 x M25 cable gland accepting cable diameter between 10 mm and 17 mm and wiring with screw terminals for wires up to 2,5mm² for mains supply (200-440V / 50-60Hz), 2 x M16 cable glands accepting cable diameter between 5 mm and 10 mm for control IN/OUT and 1xM32 cable gland accepting cable diameter between 13 mm and 21 mm* wiring with screw terminals for wires up to 1,5mm² (one cable of 5-cores at length of customer choice not supplied by Thorn and used for electrical connection to the luminaire. *Note the maximum cable diameter at the luminaire connection box is 12mm) – and LED signal to indicate the status of the Gear Box. Four holes in the angles allow different mounting options.
Simple aiming device available and adjustable on top left or right of the floodlight.

Opis

To specify state:

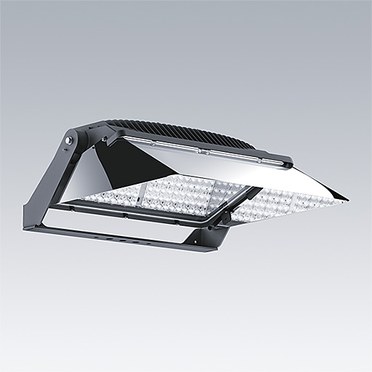

High power LED asymmetric floodlight for sports lighting and area lighting with internally inclined front glass and integral front cowl. The floodlight offers a choice of CCT (3000K/4000K/5700K) with CRI >70 ideal for recreational and Class 2/3 sports applications, as well as Transportation and large area applications. Compact floodlight (22,4kg), highly resistant (IP66, IK08), available with 3 excellent light distributions and two different visor finishes to optimize lighting designs.
To be completed with compact and light Gear Box IP66 with RDM-DMX or DALI control interface. The Premium version includes a housing made of die-cast aluminum with patented “fishbone” heatsink fins to guarantee a better thermal management in every single position and a full working range at ambient temperature -40°C/+45°C. Lifetime greater than 50khrs. Surge level 10kV for Common mode and differential mode. Can be installed on the bracket of the floodlight, inside the mast or remotely up to 200m from the floodlight. An alternative Performance gearbox is also available, including all the features of the Premium version except with linear fins in place of the 'fishbone' heatsink. Driving current must be selected according to the ambient temperature. 1250mA is the maximum driving current for outdoor applications (Ta 25°C) up to 1500 hours operation per year. 1050mA is the maximum driving current for outdoor applications with 740 and 730 LEDs (Ta 35°C). 850mA is the maximum driving current for indoor applications and outdoor with 757 (Ta 35°C). See brochure for full application matrix.
