Oxane

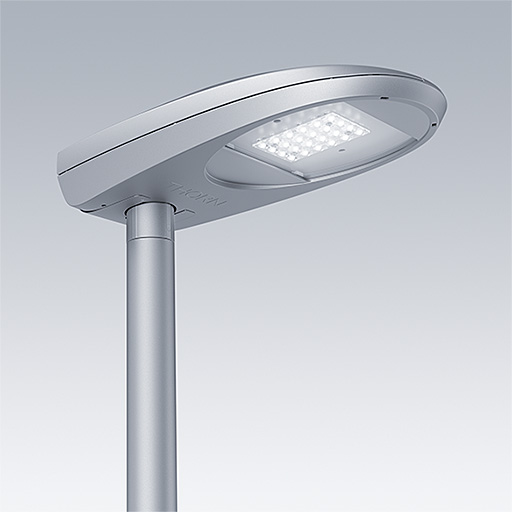

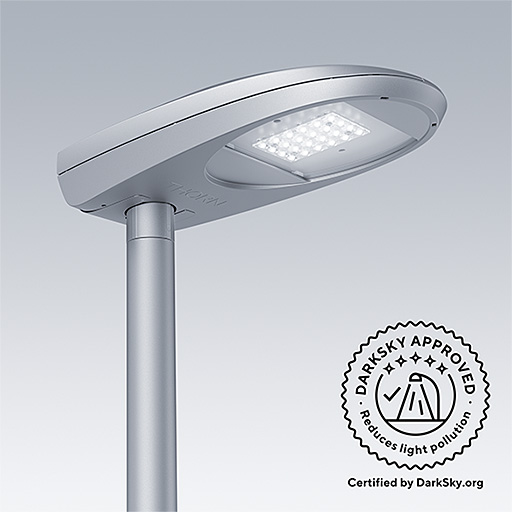

OXANE 2 classic, yet modern design road lighting lantern for urban and street applications
- Aesthetic road and urban lantern with high performance and smart city ready for direct efficient replacement of HID lanterns
- Toolless opening system with holder for very convenient maintenance and upgrade operations
- Extremely durable and robust with high quality materials (body and cover 100% made of recycled aluminum) for even coastal or subtropical installation. Highest corrosion protection (C5 from ISO 9223)
- Smart City ready: future-proof thanks to two optional Zhaga interfaces for state-of-the-art light control, wireless networking and diverse sensors. ZD4i certified and URBASENS ready
- Create your full assembly with dedicated aesthetic pole brackets. Totally configurable via myProduct
Wykonanie
Body and cover, spigot: die-cast aluminium EN AC 44300 with <0,1% copper content, powder coated texturized light grey (GY).
Glass : tempered glass (4mm) offering >90% light transmission.
External screws : stainless steel, with zink flake Geomet® treatment to avoid galvanic corrosion.
Available via myProduct configurator: texturized anthracite (ANT), black (BK) and 48 other RAL possibilities
Montaż
Installation up to 12m height. Universal spigot for lateral and post top installation. Versatile tilting technology, lateral (-15°/0°) and for post top (0°/+20°). Adjustable inclination by increments of 5° to optimize lighting distribution and uniformity. Compliant with coastal or subtropical installation.
Opis
To specify state:
State of the art aesthetic lantern for urban and road lighting application. Toolless open from top with holder for ease of maintenance and upgrade. Body and cover, spigot: die-cast aluminium EN AC 44300 with <0,1% copper content and zink flake Geomet®, external screws to deny galvanic corrosion from appearing. Corrosion resistant Class 5 (EN ISO 9223) for coastal or subtropical applications. Extra white toughened glass (4mm thickness) offering > 90% light transmission.
Optimised dimensions, low windage area : 0,073 m² (Lateral), 0,078 m² (post top). IP66. IK08. Electrical class 2.
Lumen output up to 13000lm , efficiency up to 167 lm/W with R-PEC engine lighting distributions. Wide optical offer with high power high efficacy R-PEC optical engine : 10 light distributions. Option for Zhaga compliant LED modules (Zhaga Book 15).
Colour temperature (CCT) : 2200 K / 2700 K / 3000 K / 4000 K / NightTune (2200-3000 K). Colour Rendering Index (CRI) : 70. Optional louvre for internal back light (LV).
Surge protection : up to 10 kV (3 pulse) from the driver. Option for additional protective component (SP) : 10kV/10kA (multi pulse) and 20kV (single pulse).
Mounting : post top or lateral, interchangeable. Flexible spigot pre-assembled for diameter 42/60mm (lateral) or 60mm (post top). Tilting possibilities for lateral (-15°/0°) and for post top (0°/+20°). Spigot end caps available as accessories.
Large choice of colour painting as standard : texturized light grey (GY), black (BK), anthracite (ANT close to RAL7043) or white (WH). 48 other RAL possibilities (80% gloss). Pre-wired according to needs through myProduct configurator (3 to 12m).
DALI dimmable (HFX) / Bi-Power dimming (BP) / Zhaga interface Up (ZU), Down (ZD) or Up and Down (ZUD) - Zhaga-D4i certified and with identification information. Urbasens ready.
As Thorn Oxane 2
