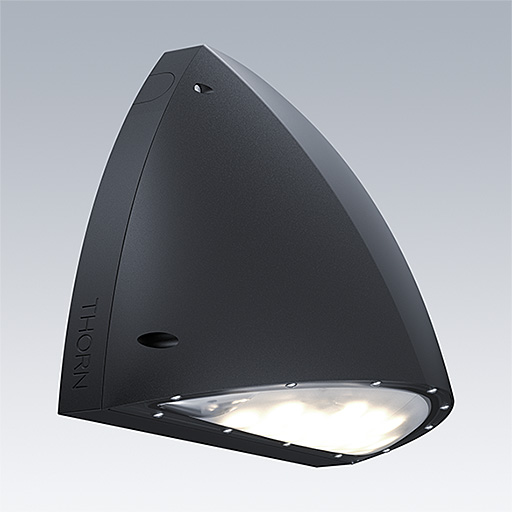

Piazza 3

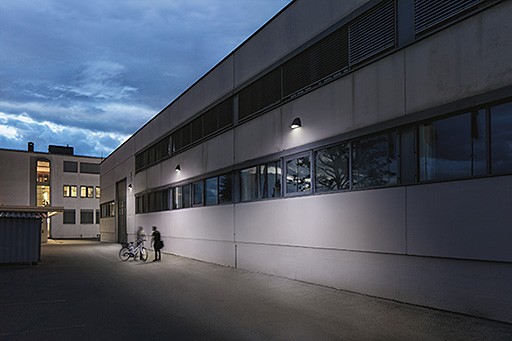

A robust and adaptable IP65 outdoor wall mounted luminaire with a unique light distribution, ideal for building perimeter applications
- IDA Dark Sky Approved. *IDA fixture seal of approval relates to <= 3000 K only and clear enclosures, +/- 10° maximum tilt only. Luminaires must be mounted as photometered.
- Unique photometrics with 3 metre forward light throw and 12 metre spacing - ideal for perimeter walkways. Excellent efficacy up to 130 lm/W.
- Complete with LCS LED technology with three lumen values (900/1600/2700lm) in colour temperature 2700K, 3000K and 4000K each, CS LED technology with colour temperature 2700K, 3000K and 4000K for HFIX version.
- Dostępność w wersji E3 i E3D, kompatybilność również z centralnym systemem awaryjnym.
- Back mounted, BESA and surface mounted conduit compatible. Through Wiring possible except for HFIX and E3D.
Wykonanie
Back-plate: EN-AC44300 die-cast aluminium painted anthracite (RAL7016)
Body: UV resistant polycarbonate In anthracite colour (RAL 7016)
Diffuser: UV resistant textured clear polycarbonate
Suitable for C5 (standard corrosion class according to ISO 9223 : 2012) without additional coating
Montaż
Wall mounted luminaire. Back mounted, BESA and surface mounted conduit compatible. Ø20 mm cable entry via rear or side conduit entries. Recommended 3-4 metre mounting height. Include captive screw.
Opis
To specify state:
IP65, IK10 vandal resistant wall mounting luminaire in anthracite (RAL 7016) with less than 1% ULOR, Dark-Sky certified.
In polycarbonate body & cast aluminium back-plate compatible with C5 environment.
Fixed or dimmable converter optional in combination with emergency E3/E3D or Photocell.
Complete with LCS technology (3000K/3500K/4000K) or fixed colour temperature 3000K or 4000K.
Complete with LCS technology (900lm/1600lm/2700lm) or fixed 1600lm/2700lm for HFIX luminaire.
As Thorn Piazza 3
▼ Piazza 3
| Opis | Moc oprawy (W) | Strumień św. oprawy (lm) | Type | Waga (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| PIAZZA 3 2700 827-830-840 HFIX EC ANT | 20 | 2601 | LED | 3.55 | 96800099 | ||||
| PIAZZA 3 9-16-27 827-830-840 HF ANT | 20 | 2640 | LED | 3.55 | 96800094 |
