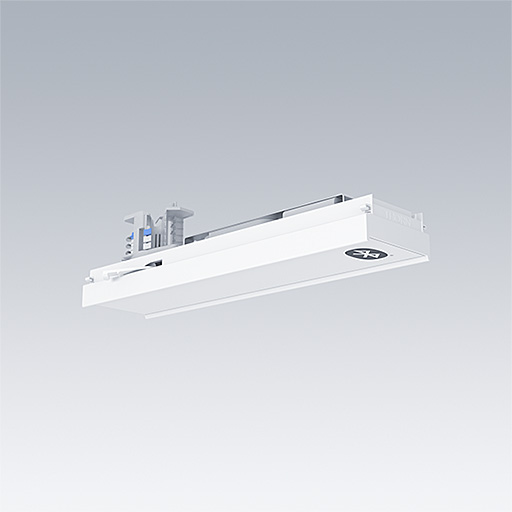

Contus / BC CONT WH

CONTUS module with integrated basicDIM Wireless (Bluetooth© CASAMBI) radio module. Adapter finish in white.Tool-free mechanical and electrical installation on the mounting rail via two side levers. Optimised for industrial, logistics, office and education applications. BC CONT module has a DALI bus supply that still supplies 40 mA minus the supply of the basicDIM Wireless module. This allows up to 20 luminaires to be controlled via DALI broadcast.No emergency lighting functionality. Individual addressing of CONTUS luminaires not possible with basicDIM Wireless.
Additional MSENS sensors (without basicDIM Wireless modules) can be used on the CONTUS rail. This reduces the number of controllable luminaires. (1 sensor - 15 luminaires / 2 sensors - 11 luminaires / 3 sensors - 6 luminaires / 4 sensors (max) - 2 luminaires).
Local control function: CONTUS rail can be controlled by basicDIM Wireless (Bluetooth© CASAMBI) module with multi-sensor according to daylight and motion without additional central control unit. If several sensors are used, the lowest measured value of the light sensors is used, the movement messages are evaluated in total. As soon as no connected sensor reports movement, absence is detected.
Only one basicDIM Wireless (Bluetooth© CASAMBI) may be operated per DALI circuit/rail.
Permissible radio distance up to 15m between individual basicDIM Wireless radio modules in other luminaires or CONTUS BC modules.
Please refer to the installation instructions for further details.

ambient temperature: 0°C to +45°C
Weight: 0.45 kg
